Holden 202 Turbo/Supercharged Rebuild kit with Spool H Beam Conrods and Ross Racing Forged Pistons (-10cc dish)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

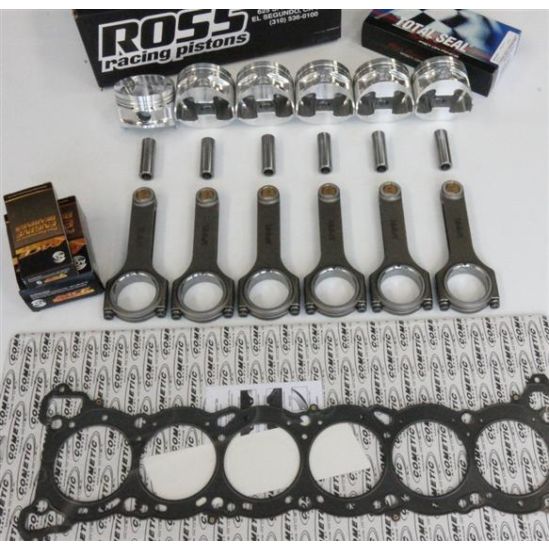

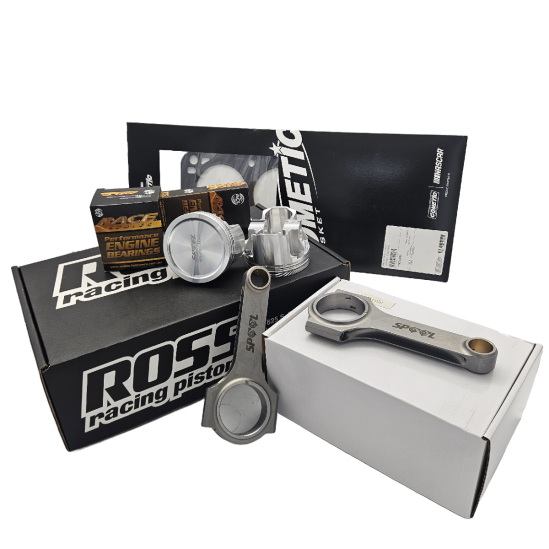

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- Ross Forged Turbo/Supercharged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
- Bolt Upgrade to ARP L19 available on drop downs
Pistons are available in:
- Compression Height: 1.68" only
- Bore Sizes: +0.040" and +0.060"
- Dish Volume: -10cc
- Weight: 460grams
- Pin: 0.866"
- Pistons come with rings, gudgeon pins and pin locks
- Forged 2618
Ross Racing Pistons:
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
| Product Name | Holden 202 Turbo/Supercharged Rebuild kit with Spool H Beam Conrods and Ross Racing Forged Pistons (-10cc dish) |
|---|---|
| Brands | Spool |
| Engine | Holden 202 |
| Make | Holden |
